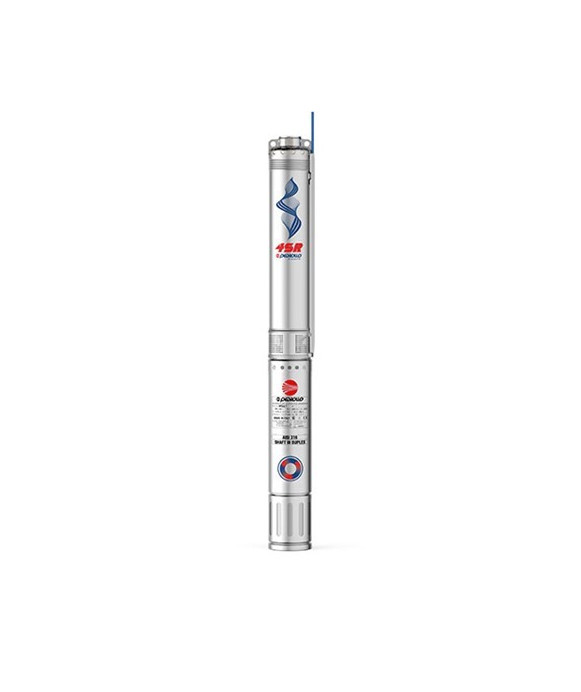

Pump body PEDROLLO mod. 4SR6/9-HYD

Pump body PEDROLLO mod. 4SR6/9-HYD

Pump body PEDROLLO constitute the suction part for Submersible Pumps 4SR model. They are built almost entirely in stainless steel to better resist as long as possible in time and in waters not completely clean because of the sand. Thanks to coupling with Pedrollo motors or Franklin specifically sized for the pump casing must tow, they offer excellent performance in both the vertical and horizontal operation (of course within the limits). Thanks to the division into 2 blocks of the electric pump, it can only replace any part damaged due, in this case the pump body.

Performance Range:

• Flow rate up to 375 l/min (22,5 m³/h)

• Head up to 506 m

Application Limit:

• Temperature of the liquid to +35 °C

• Maximum sand content 150 g/m³

• 100 m immersion limit

• Starts/hour: 20 at regular intervals

• Minimum flow rate for motor cooling 8 cm/s

• Continuous service S1

Features mod. 4SR6/9-HYD:

• Engine: Three-phase

• Power: 1.1kW

• Flow: da 25 a 150

• Head pump: 58 a 26

• Discharge mouth: 2"
