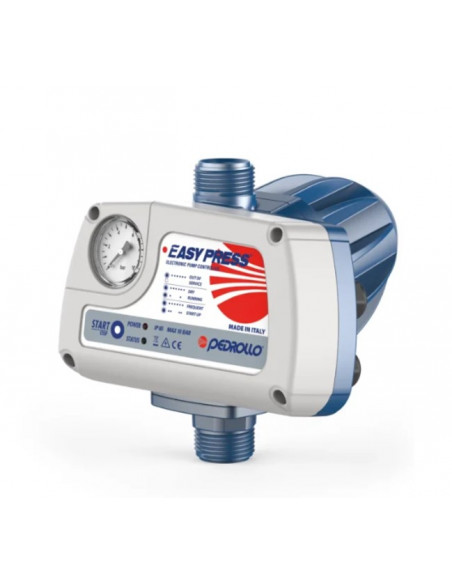

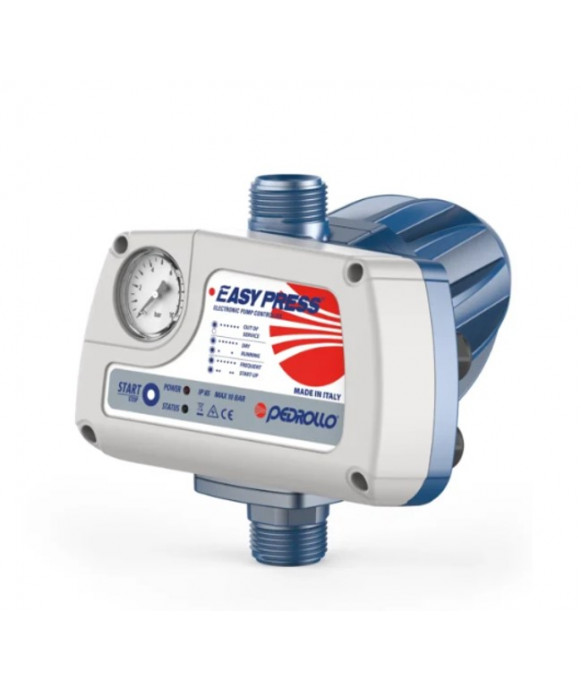

Electronic pump controllers with manometer PEDROLLO mod. EASYPRESS-2M

Electronic pump controllers with manometer PEDROLLO mod. EASYPRESS-2M

Manufacturer: Pedrollo

Electronic pump controllers with manometer PEDROLLO mod. EASYPRESS-2M

pronto magazzino
€71.60
  • Pagamenti sicuri tramite SSL

  • Spedizione gratuita sopra i 500€

  • Spedizione rapida 24/48h

  • Servizio assistenza Tel: +39.0386.733460



Electronic pump controllers with manometer PEDROLLO mod. EASYPRESS-2M

The EASYPRESS series consists of electronic devices designed to start (when a tap is turned on) and stop (when a tap is turned off) single-phase pumps. The microprocessor protects the pump from dangerous working conditions, such as dry running, and allows the pump to be restarted either automatically or manually. It also prevents the pump from starting-up too often when small leaks are present within an installation. There are three different models available to choose from, each with a different start-up pressure and easily identified by the coloured cap positioned at the rear of EASYPRESS, suitable for delivering supply  to different heights.

Application Limit:

  • Temperature of the liquid to +65 °C
  • Ambient Temperature to +40 °C
  • Burst pressure > 40 bar
  • Protection: IP 65
  • VOLTAGE: 230 V - Frequency: 50/60 Hz
  • Max current: 16 A EASYPRESS-2

Features:

  • Suitable for monophase pumps V.220 from 0,75 HP to 2 HP.
  • Manximum flow: 200 l/min (12 m/h)
  • Operational pressure: 10 bar
  • Driving pressure: 1,5 BAR
  • Joints: 1" x 1"
  • Manometer included
PD-50066/2IP
