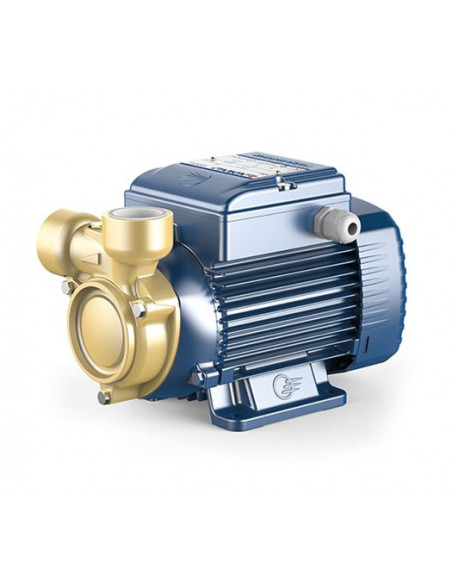

Pump with peripheral impeller PEDROLLO mod. PQm81-Bs
Manufacturer: Pedrollo
Pump with peripheral impeller PEDROLLO mod. PQm81-Bs
Irrigò configurator
In a few clicks you will have the opportunity to buy both the project and the materials necessary for the installation of the irrigation system online. Now start from points 1, 2 and 3 and start configuring your system. The videos alongside will help you while browsing.
Pump with peripheral impeller PEDROLLO mod. PQm81-Bs
The hydraulic characteristics of these pumps, coupled with their compactness, makes them suitable for use in both domestic and industrial applications.
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Performance Range:
- Flow rate up to 90 l/min (5,4 m³/h)
- Head up to 100 m
Application Limit:
- Temperature of the liquid to +90 °C
- Ambient Temperature from da -10 °C to +40 °C
- Manometric suction lift up to 8 m
- Max. working pressure: 10 bar for PQ 70-80-81-90-100-200-300
- Continuous service S1
Features:
- Engine: Three-phase 380V
- Power: 0.50 kW 0.70 Hp
- Flow: from 2 to 18 l/min
- Head Pump: from 80 to 10 mt.
- Mouths: 1/2"
PD-41PQT86YA
