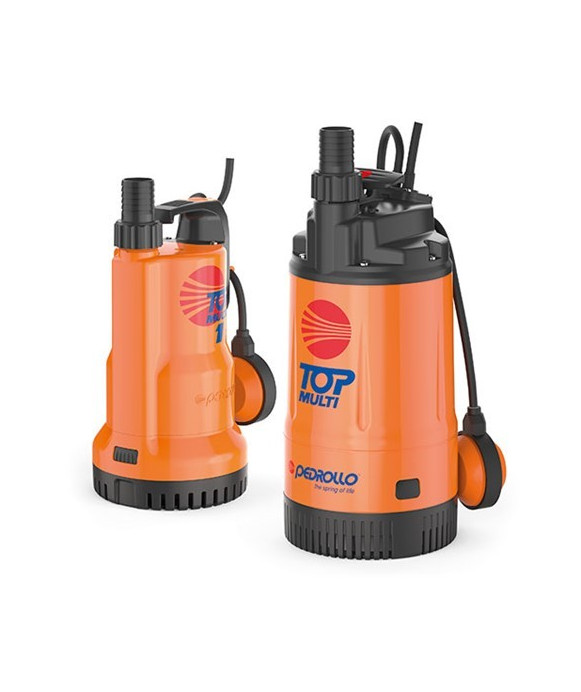

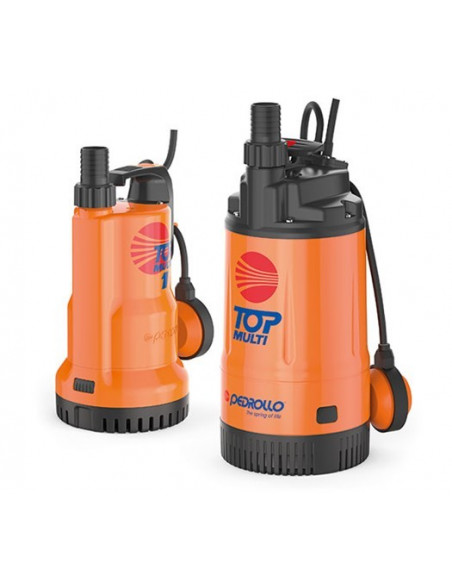

Submersible multi-impeller pump PEDROLLO mod. TOP MULTI 2
Manufacturer: Pedrollo
Submersible multi-impeller pump PEDROLLO mod. TOP MULTI 2
Irrigò configurator
In a few clicks you will have the opportunity to buy both the project and the materials necessary for the installation of the irrigation system online. Now start from points 1, 2 and 3 and start configuring your system. The videos alongside will help you while browsing.
Submersible multi-impeller pump PEDROLLO mod. TOP MULTI 2
As a result of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc. Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Performance Range:
- Flow rate up to 120 l/min (7,2 m³/h)
- Head up to 40 m
Application Limit:
- Temperature of the liquid to +40 °C
- 10 m maximum immersion depth (with a sufficiently long power cable)
- Passage of suspended solids up to Ø 1.3 mm
- Suction down to 22 mm above ground level
- Continuous service S1
Features:
-
Engine: Monophase 230V
-
Power: 0.55kW (0.75HP)
-
Flow: from 10 a 80 l/min
-
Head Pump: from 35 to 5 m
-
Discharge mouth: 1¼"
-
Body pump and suction grid built in technopolymer
Standard Equipement: hose connector fitting from ø35mm and adaptor with swing pattern valve
PD-48TPM070A1U
