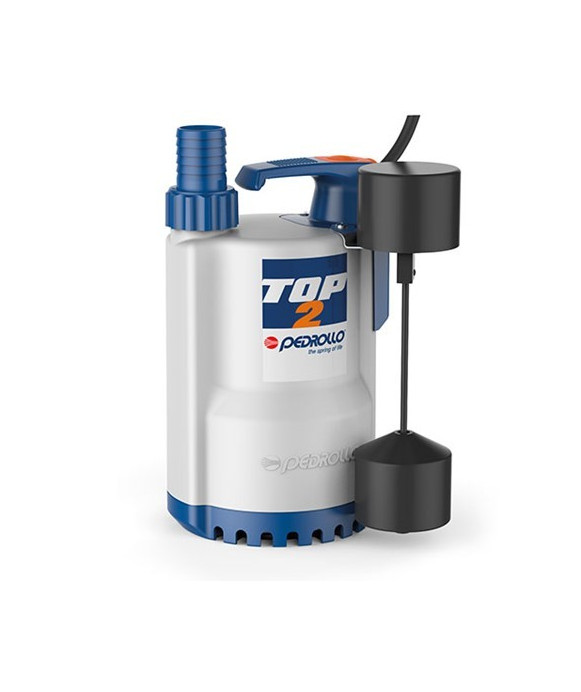

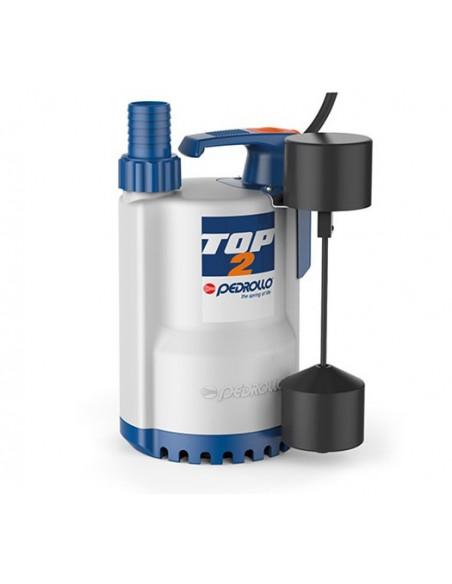

Submersible Drainage pump PEDROLLO mod. TOP3-GM

Submersible Drainage pump PEDROLLO mod. TOP3-GM

The TOP series is suitable for use with clear water that does not contain abrasive particles.

As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.

They are suitable for use in applications such as draining small flooded areas (rooms, cellars, garages) in the event of an emergency, for the disposal of waste water in the home (from dishwashers, washing machines) and for emptying drainage traps.

Performance Range:

• Flow rate up to 360 l/min (21,6 m³/h)

• Head up to 10,50 m

Application Limit:

• Temperature of the liquid to +40 °C

•  m maximum immersion deptH (with a sufficiently long power cable)

• Passage of suspended solids up to Ø 10 mm

• Suction down to 14 mm above ground level

• Continuous service S1

Features:

• Engine: Monophase 230V

• Power: 0.55kW (0.75HP)

• Flow: from 20 to 260 l/min

• Head Pump: from 10 to 2 m

• Discharge mouth: 1¼"

• Body pump and suction grid built in technopolymer
