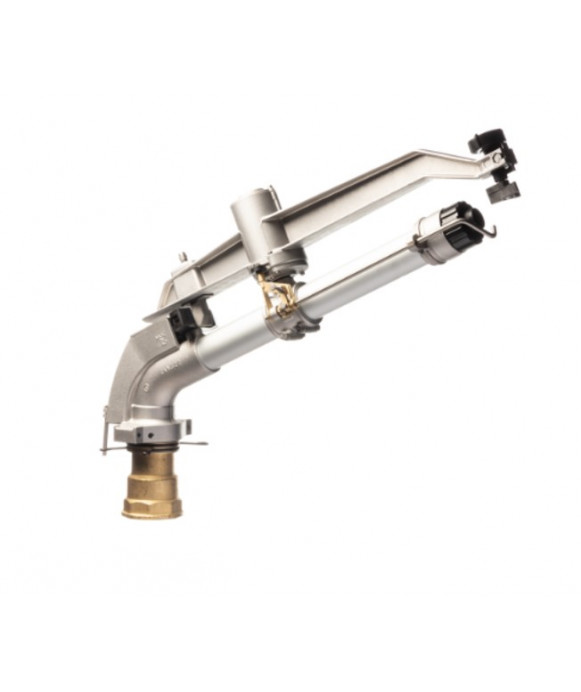

Pulse sprinkler SIME mod. RANGER

Pulse sprinkler SIME mod. RANGER

Sprinkler of middle or high capacity, and pressure, rotating at full circle or parts circle, with slow return. Particularly suitable for all types of watering machines, can be used also for center pivolts and normal installations. An intermittent and adjustable jet-breaker working only on the return, allows to get an uniform distribution of rain fall all over the irrigated area.

Its operation, of entirely new conception, prevent any vibrations and counterstokes, granting absolute safety to the user and the utilisation on very steep fields as well.

Features:

• Threaded Joint 3"
• Body in aluminium and brass
• Available snorkels 16 - 18 - 20 - 22 - 24 mm
• Pressure: from 3 to 6.8 bar
• Range: from 32 to 52 m
• Flow: from 276 to 882 l/min
