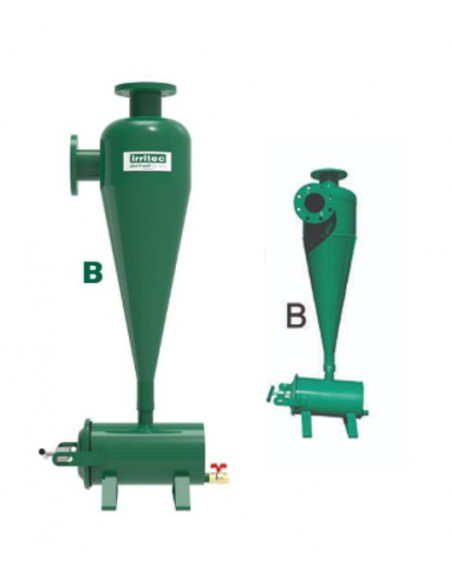

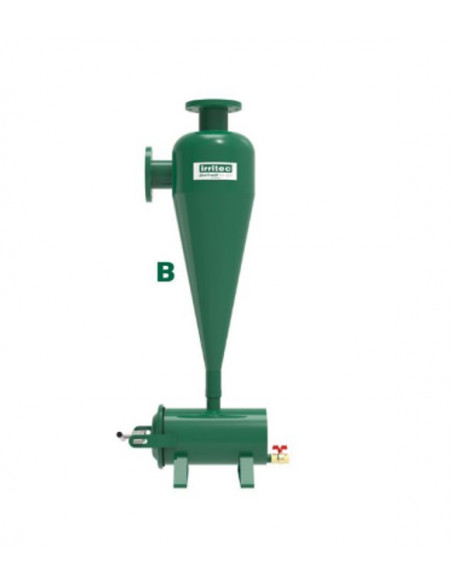

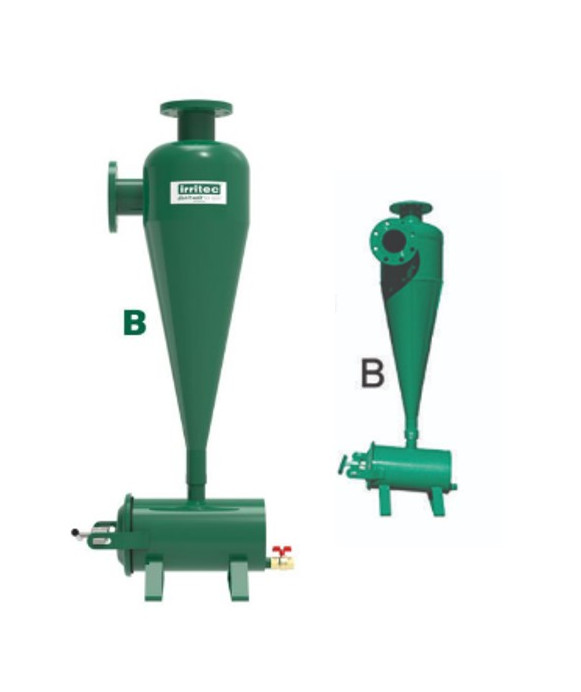

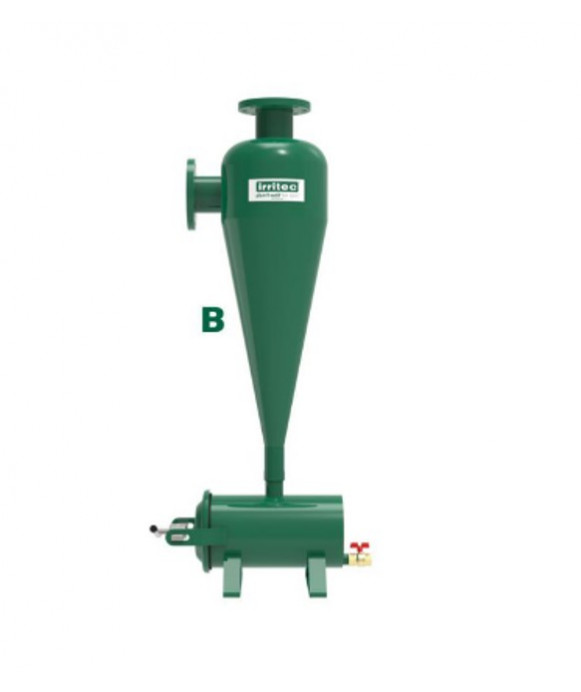

Hydro-cyclone sand separator IRRITEC mod. EIV model B d.3"

Hydro-cyclone sand separator IRRITEC mod. EIV model B d.3"

Used for irrigation water taken from wells, rivers and lakes, containing considerable quantities of sand in suspension.

A reduction unit at the base of the cone protects the filter from wear from the abrasive action of the sand.

This unit is simple to replace during normal maintenance operations.

Features:

• Operational pressure: 8 bar
• Body: sanded metal treated with zinc phosphate
• Seal: EpDM
• Joint: threaded Female Bsp
• Flow: from 30 to 50 m³/h
