Flanged elastic coupling - Iron
Flanged elastic coupling - Iron
Flanged elastic coupling - Iron
Flanged elastic coupling - Iron

Flanged elastic coupling - Iron

Flanged elastic coupling - Iron

Diametro Nominale
  • DN 32
  • DN 40
  • DN 50
  • DN 65
  • DN 80
  • DN 100
  • DN 125
  • DN 150
  • DN 200
€33.40

  • Pagamenti sicuri tramite SSL

  • Spedizione gratuita sopra i 500€

  • Spedizione rapida 24/48h

  • Servizio assistenza Tel: +39.0386.733460

Irrigò configurator

In a few clicks you will have the opportunity to buy both the project and the materials necessary for the installation of the irrigation system online. Now start from points 1, 2 and 3 and start configuring your system. The videos alongside will help you while browsing.

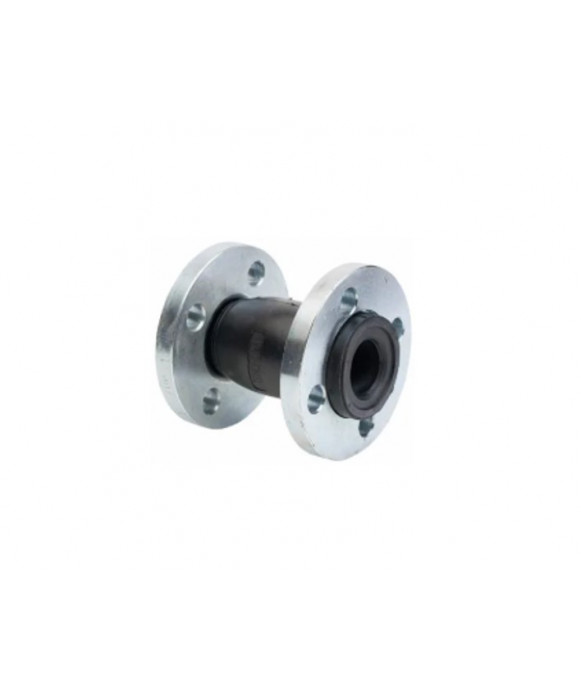

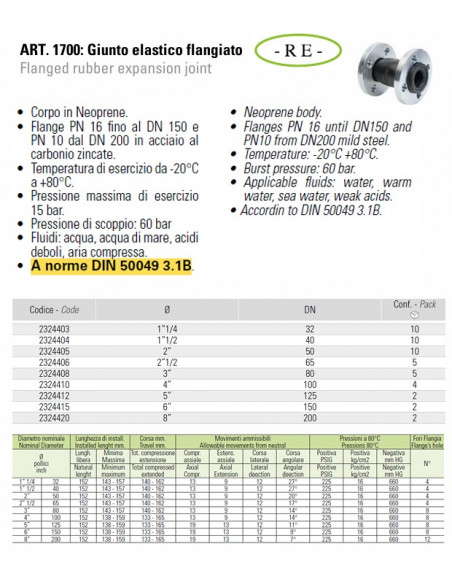

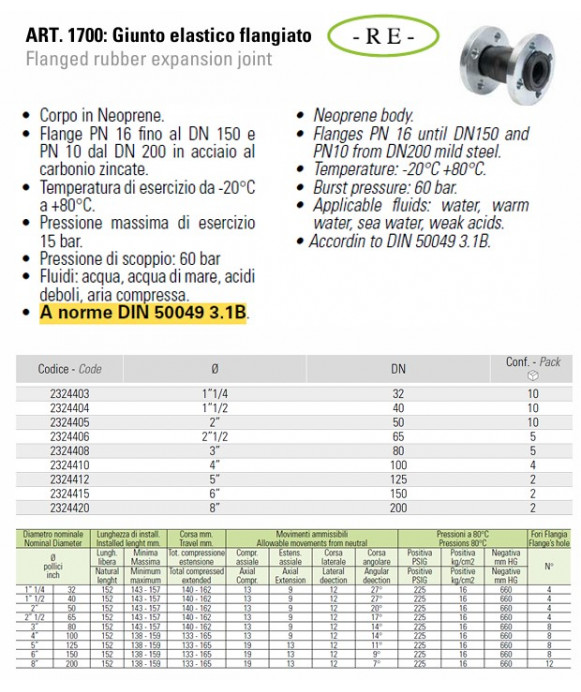

Flanged elastic coupling - Iron

  • Neoprene / EPDM body
  • PN16 Galvanized Carbon Steel Flanges
  • Operating temperature range of -20°C to +80°C
  • Maximum operating pressure 15 bar
  • Burst pressure 60 bar
  • Fluids: water - seawater - weak acids - compressed air

Complies with DIN 50049 3.1B

GT-2324403
30 Items
